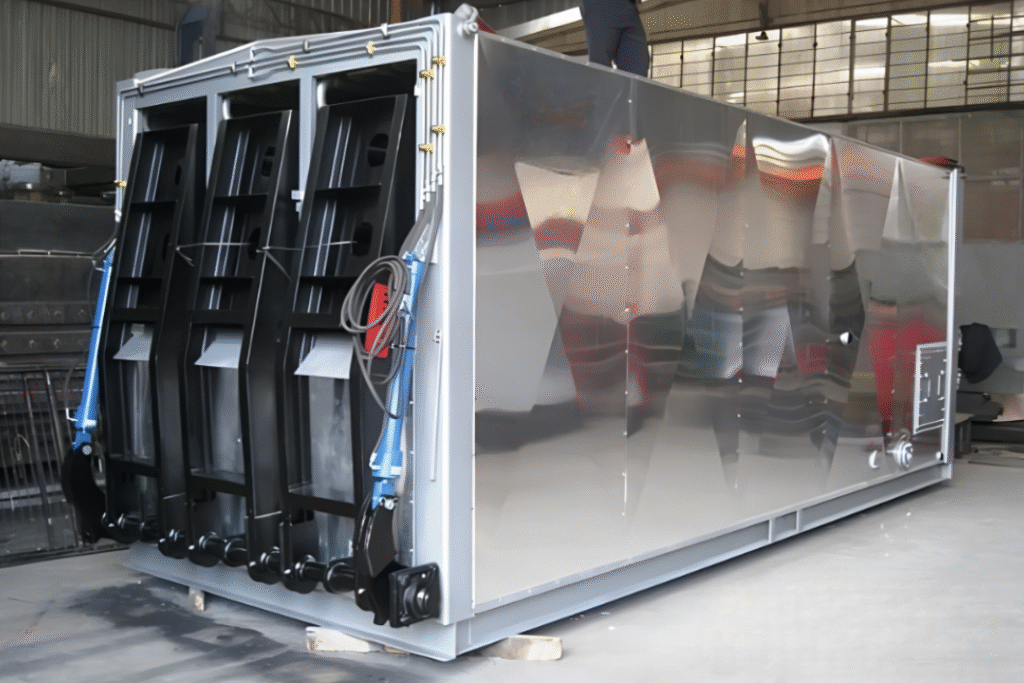

Bitumen Drum Decanter
Bitumen Drum Decanter
A Bitumen Drum Decanter is a specialized industrial equipment designed to efficiently and safely extract bitumen from standard steel drums, providing a continuous and reliable supply of molten bitumen for asphalt production, road construction, and other infrastructure projects. Bitumen is commonly supplied in drums, which require careful handling and controlled heating to prevent material loss or degradation.
The drum decanter addresses these challenges by automating the melting process, reducing manual labor, and ensuring consistent quality of the bitumen for downstream applications. By maintaining precise temperature control, the decanter ensures that the bitumen retains its essential properties such as viscosity, adhesion, and performance, which are critical for producing durable asphalt mixes and maintaining road longevity.
Features Of Bitumen Drum Decanter
- Efficient Drum Handling
- Uniform Heating System
- Precise Temperature Control
- Automatic Bitumen Discharge
- Robust and Durable Construction
Applications Of Bitumen Drum Decanter
- Road Construction Projects
- Airport Runways and Taxiways
- Bridge and Highway Maintenance
- Industrial Infrastructure Projects
- Urban Road Rehabilitation
specification Of Bitumen Drum Decanter
| Model | Unit | BITH-4 | BITH-6 | BITH-8 | BITH-10 | BITH-12 |
|---|---|---|---|---|---|---|
| Heat Load | Kcal/hr | 400,000 | 600,000 | 800,000 | 1,000,000 | 1,200,000 |
| Heat Transfer Area | m² | 45 | 62 | 78 | 96 | 115 |
| Tube OD × THK (Seamless) | mm | 48.3 × 3.6 | 48.3 × 3.6 | 60.3 × 4.0 | 60.3 × 4.0 | 76.1 × 4.5 |
| Tube Material | - | MS ASTM SA 106 GR.B | MS ASTM SA 106 GR.B | MS ASTM SA 106 GR.B | MS ASTM SA 106 GR.B | MS ASTM SA 106 GR.B |
| Thermic Fluid Circulation Pump – Type | - | Air Cooled (Size: 40–150) | Air Cooled (Size: 50– 200) | Air Cooled (Size: 65– 250) | Air Cooled (Size: 80– 300) | Air Cooled (Size: 100– 350) |
| Motor Power | HP | 10 | 15 | 20 | 25 | 30 |
| Expansion Tank Capacity | Litre | 500 | 625 | 800 | 1000 | 1250 |
| Pressure Jet Oil Fired Burner | - | Yes | Yes | Yes | Yes | Yes |
| Electrical Control Panel | - | SB Make with Schneider/ Siemens accessories | Same | Same | Same | Same |
| Other Accessories | - | 30 ft Chimney, Tie-Rod Support, Pressure Switch, Temp Sensors, Watch Glass, Level Gauge | Same | Same | Same | Same |
