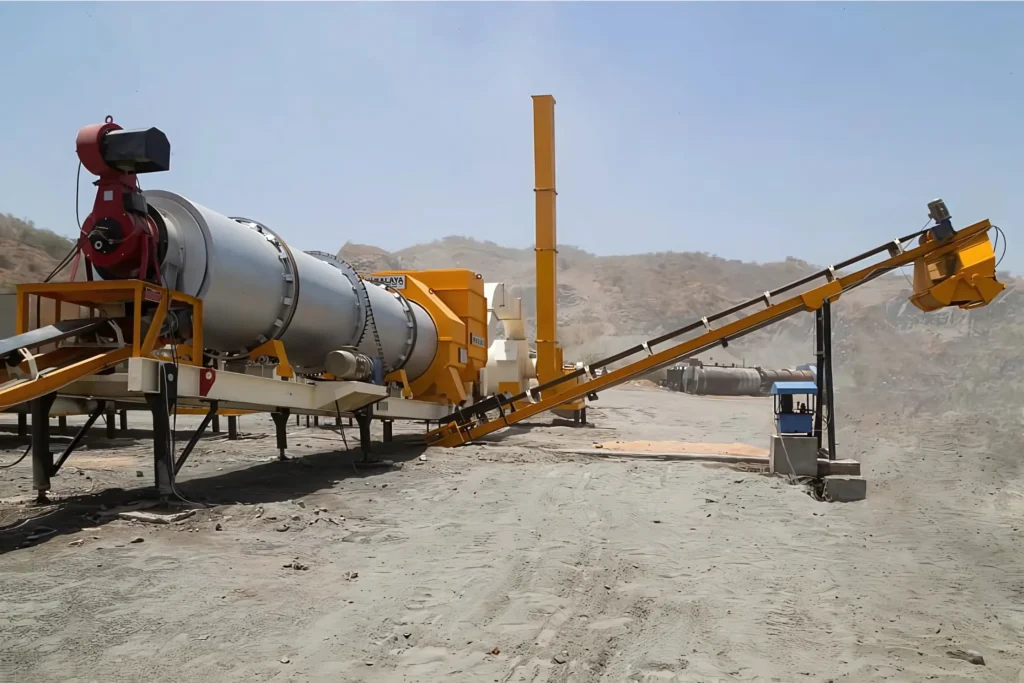

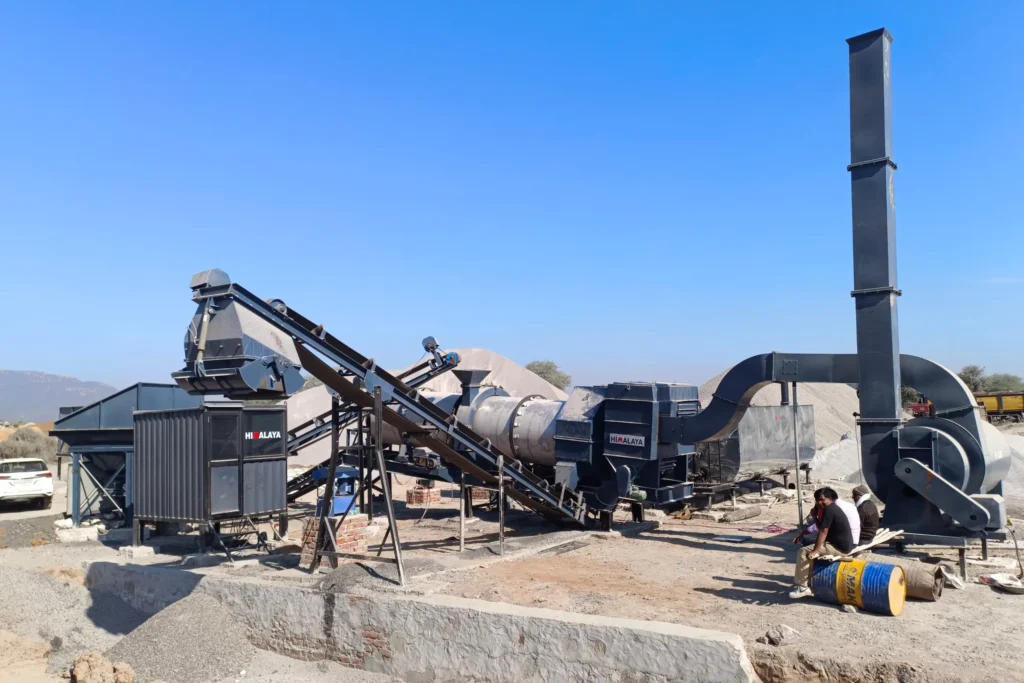

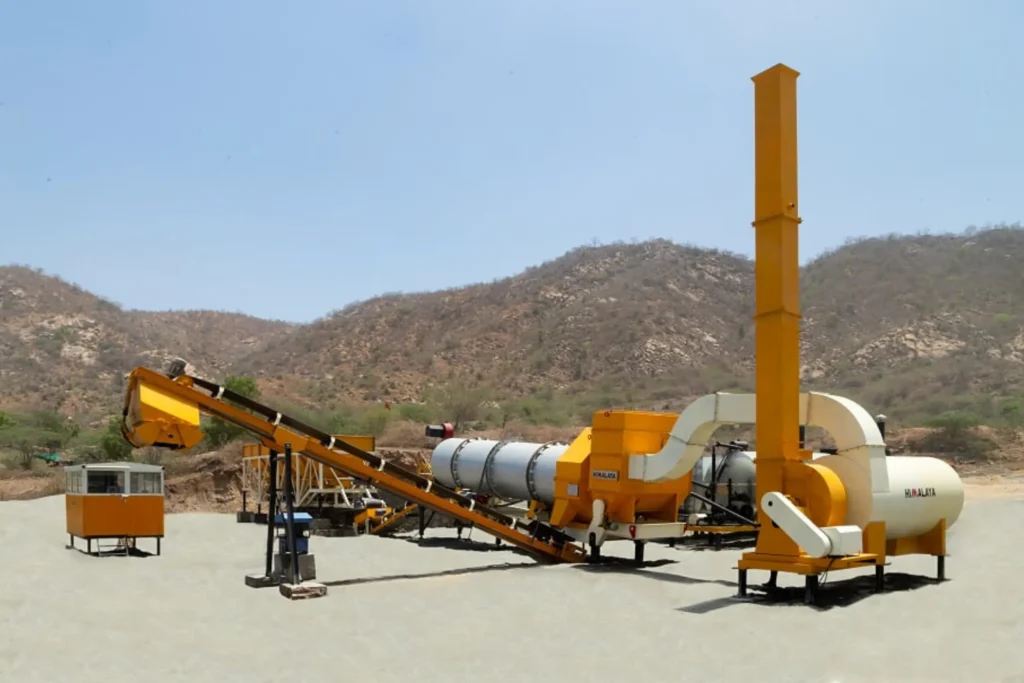

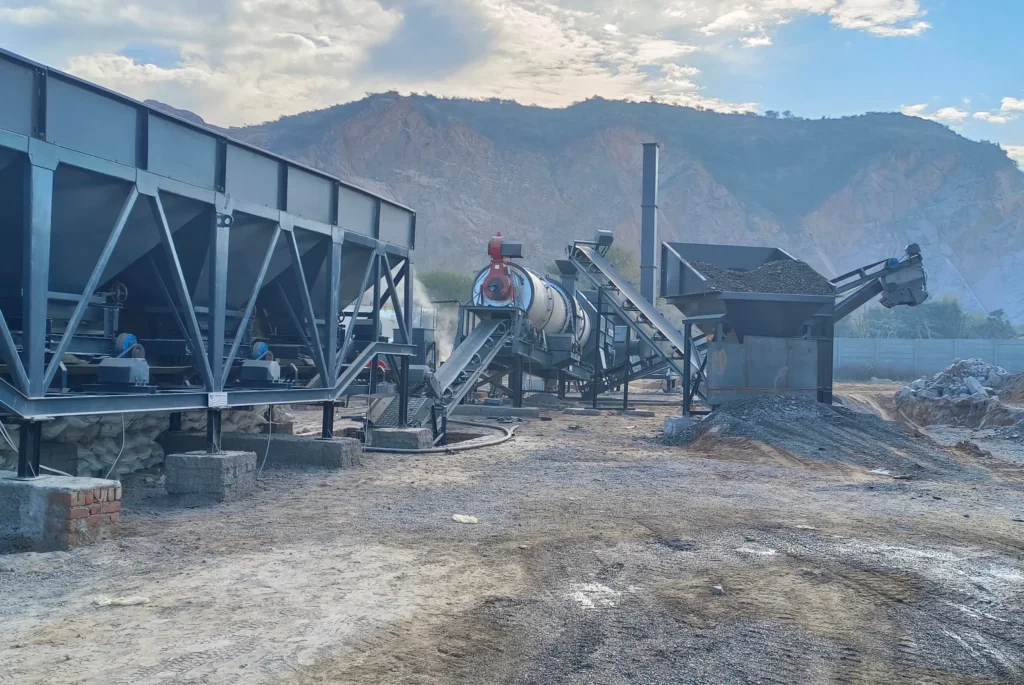

Asphalt Drum Mix With RAP System
Asphalt Drum Mix With RAP System
The Asphalt Drum Mix Plant with RAP (Reclaimed Asphalt Pavement) System is designed to provide sustainable and cost-effective asphalt production for modern road construction projects. By incorporating reclaimed asphalt material, it significantly reduces the need for virgin aggregates and bitumen, lowering material costs and environmental impact. The plant’s continuous drum mixing process ensures precise heating, drying, and mixing of both fresh and recycled materials, producing high-quality asphalt with uniform properties. With robust construction and advanced automation, it delivers reliable performance, high efficiency, and flexibility in output, making it suitable for highways, city roads, airport runways, and bridge projects.
Equipped with a computerized control system, the Asphalt Drum Mix Plant with RAP System allows precise monitoring of temperature, mix proportions, and recycling rates, ensuring consistent asphalt quality. The integrated RAP handling system simplifies the reuse of reclaimed materials without compromising mix strength or performance. Energy-efficient components, dust collection units, and low maintenance design enhance operational efficiency and safety on-site. Ideal for sustainable infrastructure projects, this plant enables contractors to minimize material waste, reduce carbon footprint, and achieve long-lasting pavement performance. It is a reliable, eco-friendly, and cost-effective solution for modern asphalt production needs.
Features Of Asphalt Drum Mix With RAP System
- RAP Integration
- Continuous Mixing Process
- Advanced Control System
- Durable & Robust Design
- Eco-Friendly Operation
Applications Of Asphalt Drum Mix With RAP System
- Highway and Expressway Construction
- Urban Road Projects
- Airport Runways and Taxiways
- Bridge and Flyover Decks
- Road Rehabilitation and Resurfacing Projects
specification Of Asphalt Drum Mix With RAP System
| SPECIFICATION | DM-35 | DM-45 | DM-50 | DM-60 | DM-65 |
|---|---|---|---|---|---|
| Cap. @ 3% Moisture | 45 tph | 60 tph | 90 tph | 120 tph | 150 tph |
| Cold Feed Bins | |||||
| Bins / Storage Cap. | 4 / 20 m³ | 4 / 20 m³ | 4 / 25 m³ | 4 / 31.25 m³ | 4 / 37.5 m³ |
| Auxiliary Drive | 1.1 kW | 1.5 kW | 1.5 kW | 2.2 kW | 2.2 kW |
| Auxiliary Conveyor belt | 450 × 2.2 m | 450 × 2.2 m | 450 × 2.9 m | 450 × 3.78 m | 450 × 3.78 m |
| Charging Width | 2.55 m | 2.55 m | 3.05 m | 3.66 m | 3.66 m |
| Gathering Conveyor Drive | 3.7 kW | 3.7 kW | 3.7 kW | 5.5 kW | 5.5 kW |
| Gathering Conveyor Belt | 500 mm × 22.4 m | 500 mm × 22.4 m | 600 mm × 25.6 m | 600 mm × 29 m | 600 mm × 29 m |
| Feeding Capacity | 80 tph | 100 tph | 120 tph | 150 tph | 200 tph |
| Slinger Conveyor | |||||
| Conveyor Drive / Width | 3.7 kW / 500 mm | 3.7 kW / 500 mm | 3.7 kW / 500 mm | 5.5 kW / 500 mm | 5.5 kW / 500 mm |
| Thermo Drum Unit | |||||
| Dia. x Dryer Length | 1.00 m × 5.7 m | 1.2 m × 6.1 m | 1.54 m × 6.7 m | 1.85 m × 7.31 m | 1.85 m × 8 m |
| Driver Motor | 15 kW | 18.6 kW | 18.6 kW | 30 kW | 44 kW |
| Drive Gear Box | Heavy Duty Worm Gear | ||||
| Burner Unit | |||||
| Burner Capacity | 250 lph / 3 MW | 350 lph / 4 MW | 550 lph / 6.5 MW | 770 lph / 9 MW | 1100 lph / 13 MW |
| High Pressure Burner | Fully Auto Dual Stage | ||||
| Fuel Type | Diesel | ||||
| Blower Connected Power | 7.5 kW | 11.25 kW | 15 kW | 15 kW | 18.7 kW |
| Bitumen Injection Pump | |||||
| Capacity | 60 lpm | 80 lpm | 120 lpm | 160 lpm | 200 lpm |
| Pump Type | Hot Oil Jacketed Gear | ||||
| Discharge System | |||||
| Load Out Conveyor Belt | 500 mm × 17.9 m | 500 mm × 17.9 m | 600 mm × 17.9 m | 600 mm × 20.3 m | 600 mm × 20.3 m |
| Gob Hopper Capacity | 1.0 ton | 1.0 ton | 1.5 ton | 2.0 ton | 2.0 ton |
