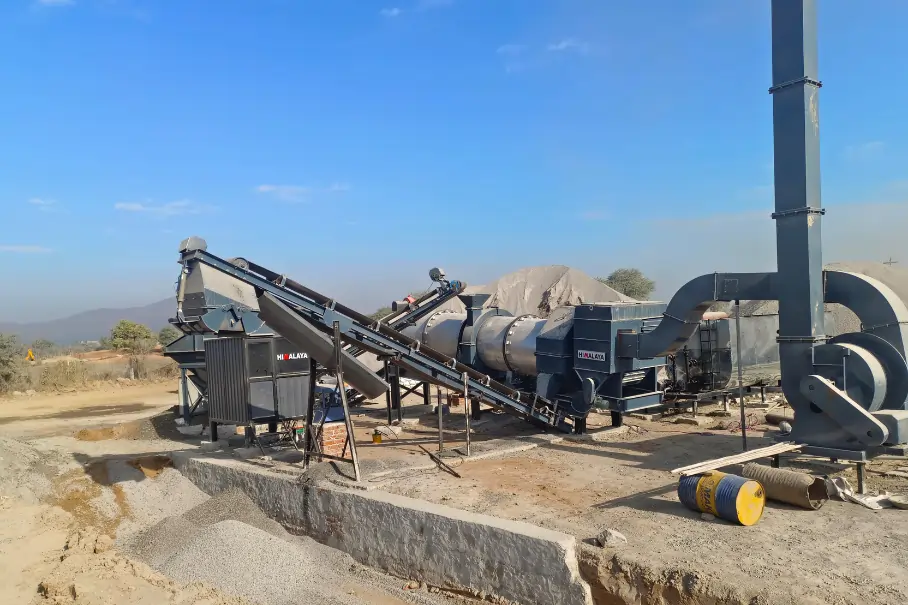

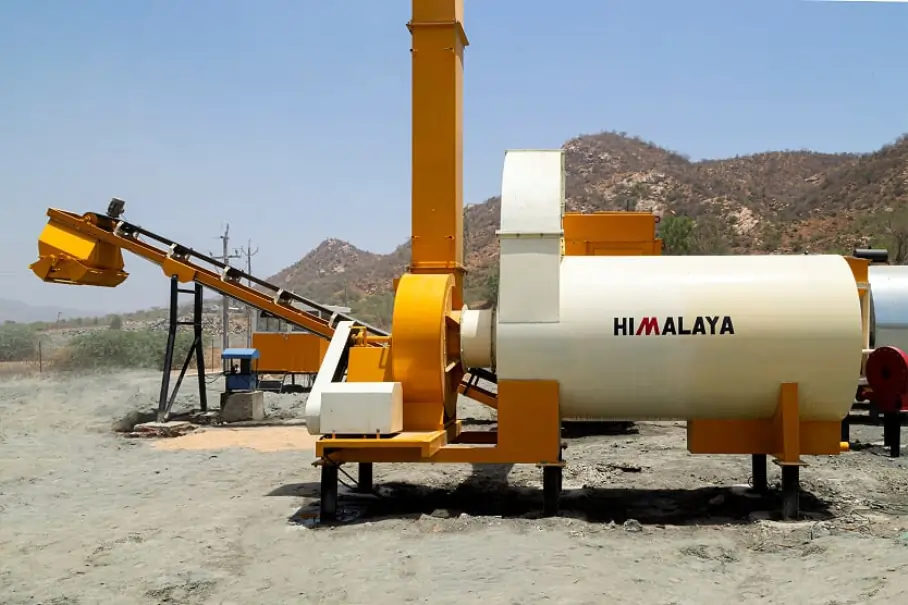

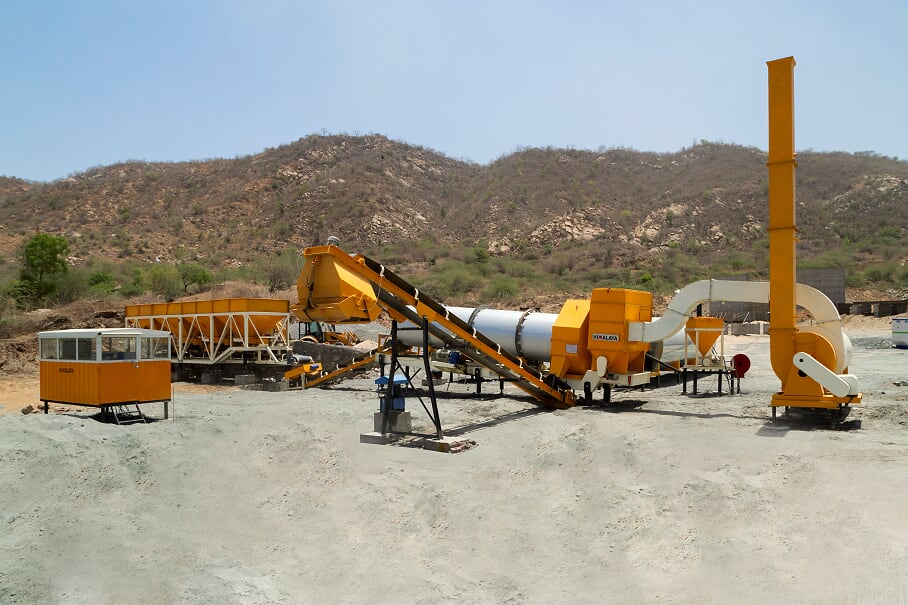

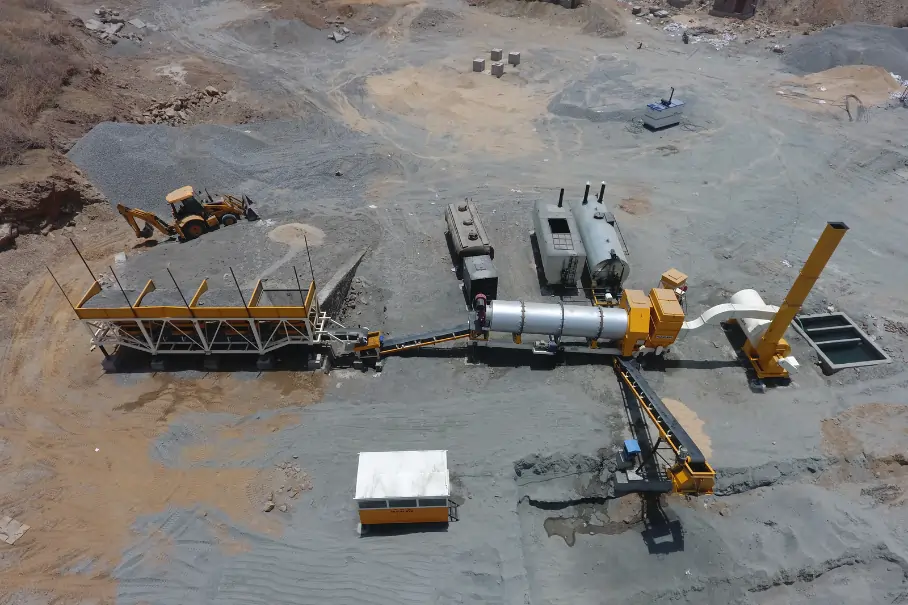

Counter Flow Drum Mixplant
Counter Flow Drum Mixplant
The Counterflow Drum Mix Plant is designed for high-efficiency asphalt production with reduced environmental impact. Its counterflow technology ensures that hot aggregates and bitumen move in opposite directions, allowing better heat transfer, uniform drying, and superior mixing quality. This design minimizes fuel consumption while maximizing productivity, making it ideal for medium to large-scale road construction projects. Built with durable components and advanced automation, the plant guarantees consistent asphalt output, precise temperature control, and easy operation. Its compact layout and modular design allow for quick installation and integration with bitumen storage tanks and paving equipment on-site.
Equipped with a modern computerized control system, the Counterflow Drum Mix Plant enables accurate monitoring of aggregate proportions, temperature, and mixing parameters. The plant’s dust collection and emission control systems ensure environmentally friendly operations, complying with strict environmental standards. Suitable for highways, city roads, airport runways, and bridge decks, it produces high-quality asphalt for a variety of infrastructure projects. Energy-efficient and low-maintenance, this plant provides reliable performance, reduced operational costs, and long service life. Contractors seeking sustainable, high-performance asphalt production choose the Counterflow Drum Mix Plant for its precision, durability, and eco-friendly operation.
Features Of Counter Flow Drum Mixplant
- Counterflow Technology
- Energy Efficient
- Advanced Automation
- Durable Construction
- Environmental Compliance
Applications Of Counter Flow Drum Mixplant
- Highway and Expressway Construction
- Urban Roads and City Infrastructure
- Airport Runways and Taxiways
- Bridge and Flyover Decks
- Industrial and Infrastructure Projects
specification Of Counter Flow Drum Mixplant
| SPECIFICATION | DM-35 | DM-45 | DM-50 | DM-60 | DM-65 |
|---|---|---|---|---|---|
| Cap. @ 3% Moisture | 45 tph | 60 tph | 90 tph | 120 tph | 150 tph |
| Cold Feed Bins | |||||
| Bins / Storage Cap. | 4 / 20 m³ | 4 / 20 m³ | 4 / 25 m³ | 4 / 31.25 m³ | 4 / 37.5 m³ |
| Auxiliary Drive | 1.1 kW | 1.5 kW | 1.5 kW | 2.2 kW | 2.2 kW |
| Auxiliary Conveyor belt | 450 × 2.2 m | 450 × 2.2 m | 450 × 2.9 m | 450 × 3.78 m | 450 × 3.78 m |
| Charging Width | 2.55 m | 2.55 m | 3.05 m | 3.66 m | 3.66 m |
| Gathering Conveyor Drive | 3.7 kW | 3.7 kW | 3.7 kW | 5.5 kW | 5.5 kW |
| Gathering Conveyor Belt | 500 mm × 22.4 m | 500 mm × 22.4 m | 600 mm × 25.6 m | 600 mm × 29 m | 600 mm × 29 m |
| Feeding Capacity | 80 tph | 100 tph | 120 tph | 150 tph | 200 tph |
| Slinger Conveyor | |||||
| Conveyor Drive / Width | 3.7 kW / 500 mm | 3.7 kW / 500 mm | 3.7 kW / 500 mm | 5.5 kW / 500 mm | 5.5 kW / 500 mm |
| Thermo Drum Unit | |||||
| Dia. x Dryer Length | 1.00 m × 5.7 m | 1.2 m × 6.1 m | 1.54 m × 6.7 m | 1.85 m × 7.31 m | 1.85 m × 8 m |
| Driver Motor | 15 kW | 18.6 kW | 18.6 kW | 30 kW | 44 kW |
| Drive Gear Box | Heavy Duty Worm Gear | ||||
| Burner Unit | |||||
| Burner Capacity | 250 lph / 3 MW | 350 lph / 4 MW | 550 lph / 6.5 MW | 770 lph / 9 MW | 1100 lph / 13 MW |
| High Pressure Burner | Fully Auto Dual Stage | ||||
| Fuel Type | Diesel | ||||
| Blower Connected Power | 7.5 kW | 11.25 kW | 15 kW | 15 kW | 18.7 kW |
| Bitumen Injection Pump | |||||
| Capacity | 60 lpm | 80 lpm | 120 lpm | 160 lpm | 200 lpm |
| Pump Type | Hot Oil Jacketed Gear | ||||
| Discharge System | |||||
| Load Out Conveyor Belt | 500 mm × 17.9 m | 500 mm × 17.9 m | 600 mm × 17.9 m | 600 mm × 20.3 m | 600 mm × 20.3 m |
| Gob Hopper Capacity | 1.0 ton | 1.0 ton | 1.5 ton | 2.0 ton | 2.0 ton |
